Use a Drive Data as input of a run

Select a DeltaTwin® component that requires an URL type as input

Click Run

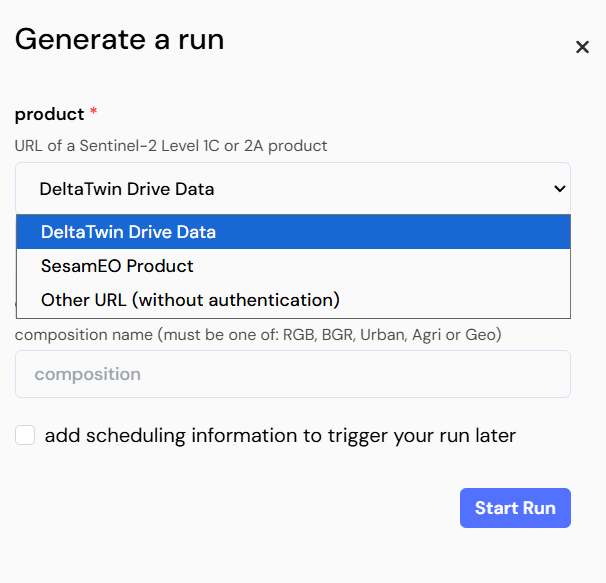

In the modal form, the URL field offers 3 options :

• DeltaTwin Drive Data
• SesamEO product
• URL (without authentification)

Select DeltaTwin Drive Data

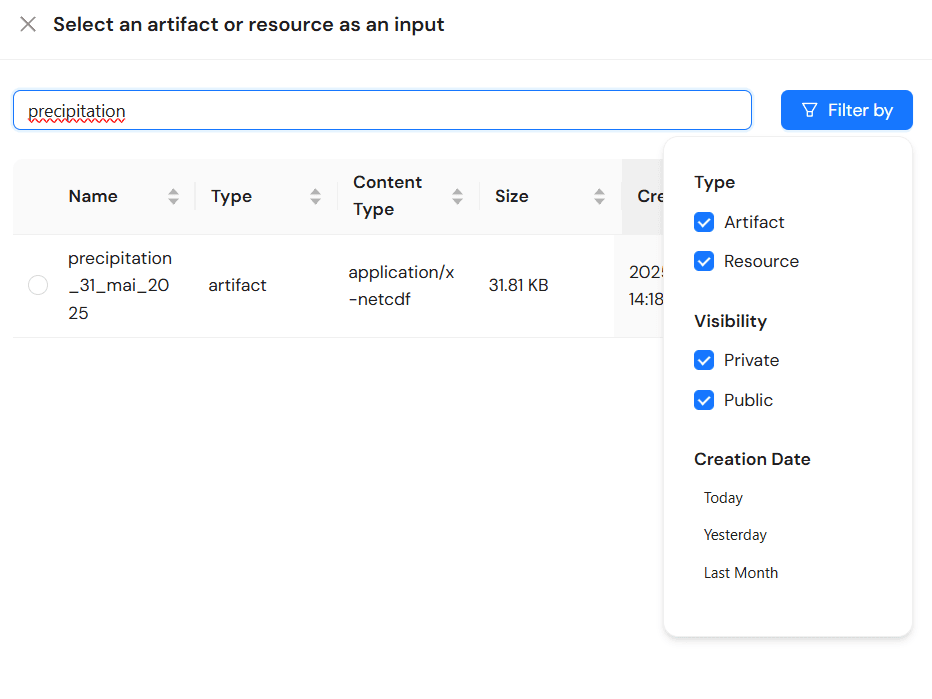

The DeltaTwin® Drive Data option allows to select an artifact or resource from a private or public storage. It is possible to filter the Drive Data to facilitate searching for the desired data.

Create a JSON file containing your desired input values

In the example below, the input “product” refers to a data file. To reference a Drive Data file, set the field ‘type’ to DriveData and fill in the ‘value’ field with the ID of the resource.

For example, the JSON input file for the band-extractor component will be :

{
  "product": {
      "type": "DriveData",
      "value": "the-id-of-the-resource"
    },
  "bandName": {
      "type": "string",
      "value": "B01"
  }
}

Save JSON file as inputs.json

Run deltatwin run start band-extractor -i inputs.json
