Use a product from SesamEO®

Until now, only publicly accessible product URLs could be used as input to DeltaTwin® component. Now, SesamEO® product URLs are supported with authentication, by specifying your SesamEO® API key.

Get your SesamEO® API Key

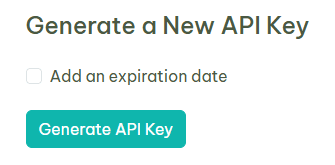

First, generate your API key in SesamEO®  by opening the user menu (top-right corner) and selecting My SesamEO account . This API Key allows third-party applications, like DeltaTwin® to securely connect to SesamEO® services on your behalf.

alt text

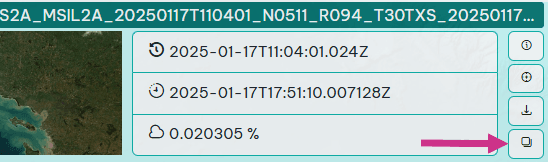

Don’t forget to save your API key as you will not be able to retrieve it after leaving this page. You will have to regenerate one otherwise. Then, choose your desired product on SesamEO® and click the “Copy Download Link” button.

alt text

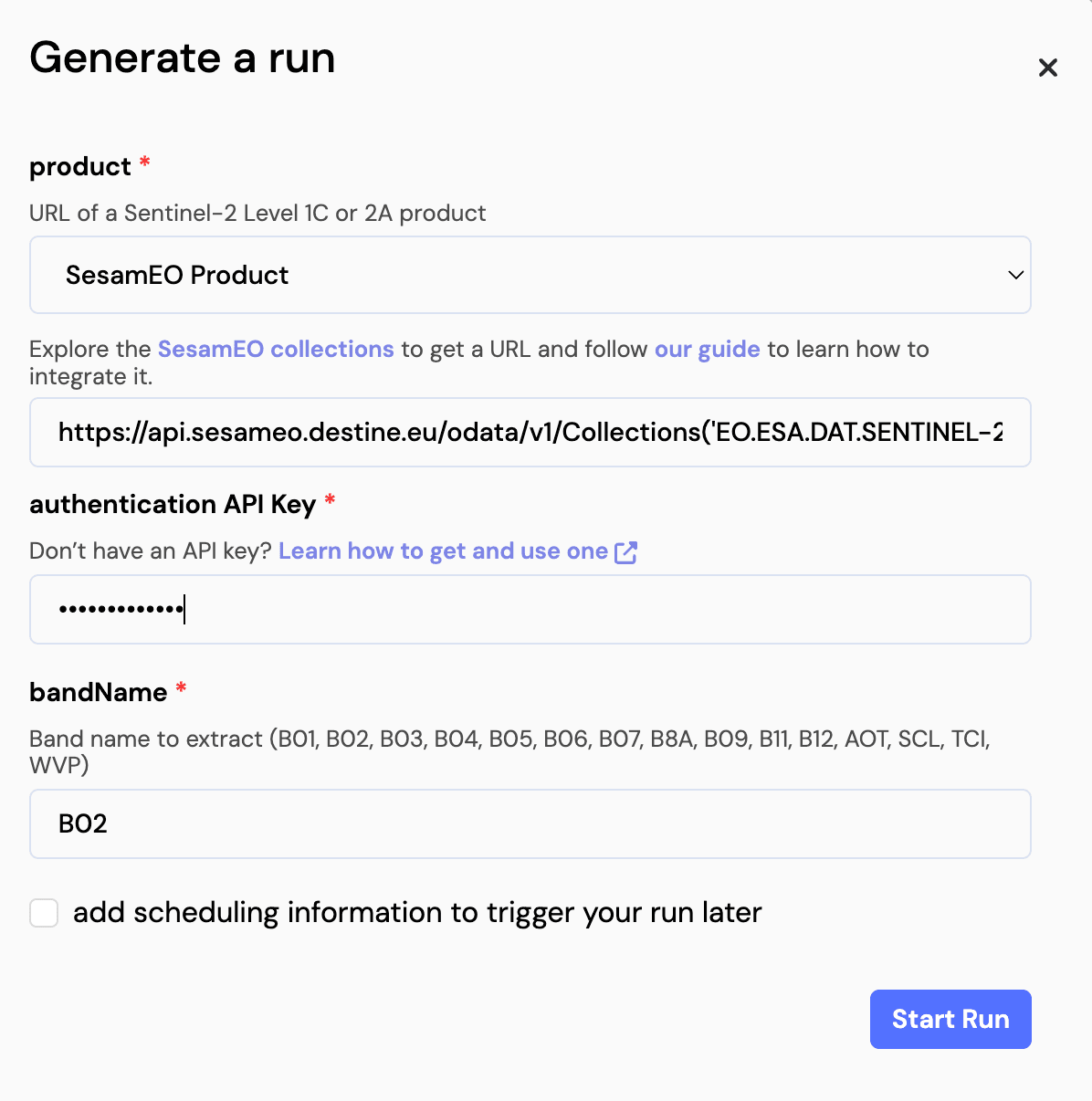

From the UI

Select a DeltaTwin® component that requires a URL type as input

Select “SesamEO® API key”

And add your SesamEO® product URL in the URL field.

Paste your secret SesamEO® API key

In “Authentication API Key” field, paste your SesamEO® API key previously generated.

alt text

From the CLI

Run deltatwin component get <deltatwin_name> -f json

To get the informations of your DeltaTwin® component, use the following command : deltatwin component get <deltatwin_name> -f json.
E.g. for the “band-extractor” component : deltatwin component get band-extractor -f json.

Find the inputs section

...
"inputs": [
        {
            "name": "product",
            "type": "Data",
            "default_value": null,
            "description": "URL of a Sentinel-2 Level 1C or 2A product"
        },
        {
            "name": "bandName",
            "type": "string",
            "default_value": null,
            "description": "Band name to extract (B01, B02, B03, B04, B05, B06, B07, B8A, B09, B11, B12, AOT, SCL, TCI, WVP)"
        }
    ],
...

Create a JSON file containing your desired input values

To run a DeltaTwin® with inputs that require an API Key, you must create a file that will contain your desired inputs values with the following json format :

{
  "product": {
      "type": "Data",
      "url": "https://api.sesameo.destine.eu/odata/v1/Collections('EO.ESA.DAT.SENTINEL-2.MSI.L2A')/Products('CDSE:91e28786-0c30-4ccd-879d-e7eb4d42b75c')/$value",
      "auth": {
          "type": "SesamEO",
          "api_key": "Your_SesamEO_API_KEY"
      }
  },
  "bandName": {
      "type": "string",
      "value": "B01"
  }
}

Run deltatwin run start band-extractor -i inputs.json

A message looking like this should be displayed :

Id:c94fba23-f43f-4492-92de-d823cb6896f4
Author:3d8e5fb9-776e-45c9-8649-b042122502e4
Creation Date:Jan 23, 2025, 11:45:36 AM
Status:pending
Inputs:
     Input name | Type   | Value/Basename
    ------------+--------+---------------------------------------------------------------------------------------------------
     product    | Data   | https://api.sesameo.destine.eu/odata/v1/Collections('EO.ESA.DAT.SENTINEL-2.MSI.L2A')/Products('CD…
     bandName   | string | B01
Outputs:
     Output name | Type | Value/Basename
    -------------+------+----------------

You can check the status of your run using the command :
deltatwin run get <run_id>
